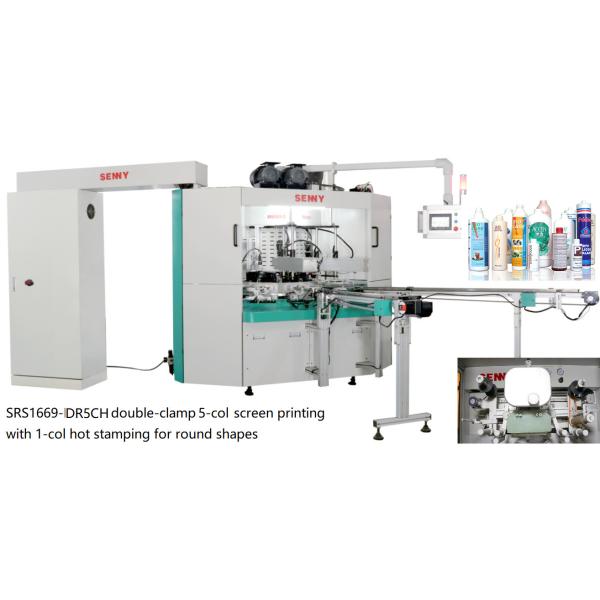

Automatic Hot Stamping Machine With 5-Color Screen Printing Machine For Acrylic Jars And Plastic Jars Tubes Caps
Catalog 04_compressed.pdf
Application:
The machine is designed for all-round screen printing and hot stamping and can screen print or hot stamp round lotion bottles, cups, lids, cream jars in partial or 360 degrees.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Product Features:
1. Fewer tools, simpler operation, less maintenance, higher accuracy. Color to color register accuracy: +/- 0.1 mm.
2. Controlled by PLC and touch screen, equipped with various monitoring systems to ensure the stability and safety of the machine when running at high speed.
3. According to the product characteristics, the machine can be equipped with various functions, such as:
Vertical or horizontal feeding and discharging,
Orientation,
Anti-static device,
Flame pretreatment,
Automatic pre-register and main register,
No item no print,
Conventional UV or LED UV curing systems, etc.
4. Option to integrate different finishing processes such as hot stamping units, labeling, heat transfer and varnishing.
5. Screen heating with thermoplastic inks.
6. All components are from Germany, USA and Japan to ensure machine quality and printing stability.
7. Machine can be customized according to special products.
Flame treatment unit and double clamping device for PP/PE materials
UV curling device
